Netafim’s drip irrigation machine is an extremely close friend of landscape irrigation. In some cases, the spraying radius is too small, the use of drip irrigation line is optimal …
The drip irrigation line is very suitable for landscape design for narrow roads with a drip irrigation radius of less than 1m … Landscape watering ropes have 2 types: floating drip tubes and buried drip pipes implicit.
1. Drip irrigation for landscape to float on the surface or buried underground – Unitechline AS 17mm
APPLICATION
Unitechline AS 17mm can be installed underground or for floating on the ground.
– Use on uneven ground.
– Areas with high winds.
– Unitechline is used to irrigate landscapes.
– Area with machinery.
Unitechline is used for curved, narrow areas with no specific shape.
– Unitechline uses landscape irrigation for curvy, narrow areas with no specific shape.
– Unitechline irrigates grasses, shrubs, trees, flowers, parks, watering fruit trees against the wall.
– Unitechline application for sports courts, tennis courts, golf courts.
Area difficult to move.
– Tree arch.
FUNCTIONS AND BENEFITS
Unitechline has an anti-siphon suction mechanism to prevent dirt from getting caught in the dripping hole, pressure compensation mechanism.
Balanced and precise water distribution for the unitechline drippers over a wide pressure range
Water and nutrients are distributed 100% evenly along the drip line.
The drip tip is specially designed with regular self-cleaning mechanism.
Water enters the drip hole from the central flow, and the residue is trapped at the inlet of the drip hole.
– The drip tip is uniquely designed with the mechanism against root penetration into the drip tip, completely independent of chemicals.
– The filter is very large at each drip tip.
– The water path is very wide inside the drip tip.
– TurboNet ™ water passageway.
– Unitechline drip tip is glued inside the tube.
Water enters the drip hole from the central flow, and the residue is trapped at the inlet of the drip hole.
– Flexible in spreading dropper.
Unitechline is suitable for all terrain.
– Unitechline of Netafim resists UV rays and resists heat directly from the sun so it can be installed on the surface of the growing soil.
– Single drip tip at the outlet of the tube.
Netafim’s Unitechline allows the drip cord to be buried underground without the need for chemical protection.
SPECIFICATION
– The distance between two drippers: 0.3, 0.4, 0.5, 1.00m.
(The distance between the two drippers differs depending on the user’s requirements).
– Solution pressure: 0.5-4.0 bar.
– Anti-drip mechanism.
– Maximum pressure in the system: 4 bar.
– Filter core size (recommended): 120 mesh.
2. Landscape drippers for floating on the surface or buried underground – Techline CV 17 & 16mm
APPLICATION
– Techline CV landscape irrigation drip tubes can be installed underground or floating on the ground.
– Techline CV of Netafim can be used in uneven land.
– Areas with high winds.
– Techline CV is used to irrigate landscapes.
– Area with machinery.
– Curved, narrow areas with no specific shape.
– Techline CV dropper is used for watering grasses, shrubs, trees, flowers, parks, watering fruit trees against the wall.
– Techline CV of Netafim is used for sports courts, tennis courts, golf courts.
Areas with difficulty moving, tree canopy.
FUNCTIONS AND BENEFITS
Netafim’s CV line has an anti-siphon suction mechanism to prevent dirt from getting caught in the drip hole, pressure compensation mechanism.
Balanced and precise water distribution for the drippers over a wide pressure range.
Water and nutrients are distributed 100% evenly along the drip line.
The drip tip is specially designed with regular self-cleaning mechanism.
Water enters the drip hole from the central flow, and the residue is trapped at the inlet of the drip hole.
– The drip tip is uniquely designed with the mechanism against root penetration into the drip tip, completely independent of chemicals.
– The filter is very large at each drip tip.
– The water path is very wide inside the drip tip.
– TurboNet ™ water passageway.
– The drip tip is glued inside the wire tube.
Water enters the drip hole from the central flow, and the residue is trapped at the inlet of the drip hole.
– Flexible in spreading dropper.
– Techline CV is suitable for all terrain.
Techline CV resists UV rays, Resists direct heat from the sun, so it can be installed on the surface of the soil.
Single drip tip at the outlet of the tube, allowing the drip cord to be buried underground without the need for chemical protection.
SPECIFICATION
– The distance between two drippers: 0.3, 0.4, 0.5, 1.00 m (the distance between two different drippers depends on users’ requirements).
– Solution pressure: 1.0 – 4.0 bar.
– Anti-drip mechanism.
– Maximum pressure in the system: 4 bar.
– Filter core size (recommended): 120 mesh
Mechanism against siphon suction force
3. Drip irrigation for landscape buried underground using recycled water from wastewater – Bioline AS 17mm & 16mm
– Techline CV landscape irrigation drip tubes can be installed underground or floating on the ground.
– Techline CV of Netafim can be used in uneven land.
– Areas with high winds.
– Techline CV is used to irrigate landscapes.
– Area with machinery.
– Curved, narrow areas with no specific shape.
– Techline CV dropper is used for watering grasses, shrubs, trees, flowers, parks, watering fruit trees against the wall.
– Techline CV of Netafim is used for sports courts, tennis courts, golf courts.
Areas with difficulty moving, tree canopy.
FUNCTIONS AND BENEFITS
Netafim’s CV line has an anti-siphon suction mechanism to prevent dirt from getting caught in the drip hole, pressure compensation mechanism.
Balanced and precise water distribution for the drippers over a wide pressure range.
Water and nutrients are distributed 100% evenly along the drip line.
The drip tip is specially designed with regular self-cleaning mechanism.
Water enters the drip hole from the central flow, and the residue is trapped at the inlet of the drip hole.
– The drip tip is uniquely designed with the mechanism against root penetration into the drip tip, completely independent of chemicals.
– The filter is very large at each drip tip.
– The water path is very wide inside the drip tip.
– TurboNet ™ water passageway.
– The drip tip is glued inside the wire tube.
Water enters the drip hole from the central flow, and the residue is trapped at the inlet of the drip hole.
– Flexible in spreading dropper.
– Techline CV is suitable for all terrain.
Techline CV resists UV rays, Resists direct heat from the sun, so it can be installed on the surface of the soil.
Single drip tip at the outlet of the tube, allowing the drip cord to be buried underground without the need for chemical protection.
SPECIFICATION
– The distance between two drippers: 0.3, 0.4, 0.5, 1.00 m (the distance between two different drippers depends on users’ requirements).
– Solution pressure: 1.0 – 4.0 bar.
– Anti-drip mechanism.
– Maximum pressure in the system: 4 bar.
– Filter core size (recommended): 120 mesh
Mechanism against siphon suction force

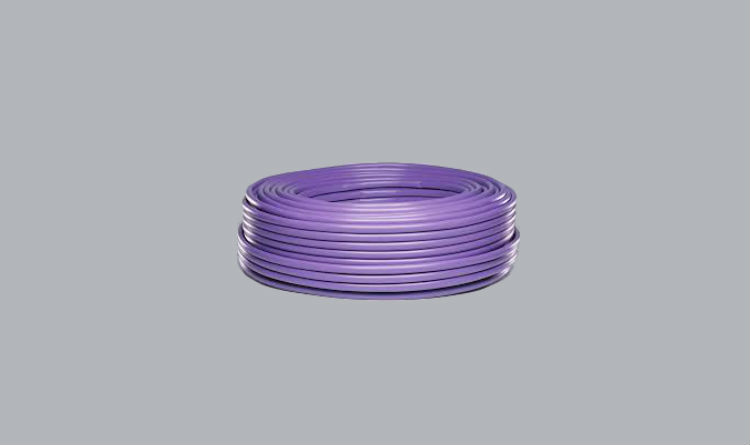

3. Drip irrigation for landscape buried underground using recycled water from wastewater – Bioline AS 17mm & 16mm
APPLICATION
– Bioline application for water reuse irrigation program.
– The dropper is buried underground.
– Bioline of Netafim is used to irrigate lawns, shrubs, trees, and flowers.
FUNCTIONS AND BENEFITS
– Bioline of Netafim has an anti-siphon mechanism to prevent dirt from getting caught in the drip hole and pressure compensation mechanism.
Balanced and precise water distribution for the drippers over a wide pressure range.
Water and nutrients are distributed 100% evenly along the drip line.
The drip tip is specially designed with regular self-cleaning mechanism.
Water enters the drip hole from the central flow, and the residue is trapped at the inlet of the drip hole.
– The drip tip is uniquely designed with the mechanism against root penetration into the drip tip, completely independent of chemicals.
– The filter is very large at each drip tip.
– The water path is very wide inside the drip tip.
– TurboNet ™ water passageway.
– The drip tip is glued inside the wire tube.
Water enters the drip hole from the central flow, and the residue is trapped at the inlet of the drip hole.
– Flexible in spreading dropper.
– Bioline by Netafim is suitable for all terrain.
Bioline resists UV rays, resists direct heat from the sun, so it can be installed on the surface of the soil.
– Single drip tip at the outlet of the tube.
– Allow drip cord to be buried underground without chemical protection.
SPECIFICATION
Purple dropper warns against the use of unclean water.
– The distance between two drippers: 0.3, 0.4, 0.5, 1.00 m (the distance between two different drippers depends on users’ requirements).
– Bioline of Netafim has an operating pressure range: 0.5-4.0 bar.
Mechanism against siphon suction force.
– Maximum pressure in the system: 4 bar.
– Filter core size (recommended): 120 mesh.
Coil length: 100, 400 m.
– Use 16mm; 17mm accessories for assembly (black or purple can be used).
4. Dropper for use on the surface or under the coating – Techline AS 17mm
APPLICATION
– Techline droppers can be placed on the surface or under the coating.
– Techline of Netafim is used in uneven land.
– Areas with high winds.
– Techline of Netafim used to irrigate landscapes.
– Area with machinery.
– Curved, narrow areas with no specific shape.
– Techline of Netafim is used to irrigate grasses, shrubs, trees, flowers, parks, watering fruit trees against the wall.
– Applications for sports courts, tennis courts, golf courts.
Area difficult to move.
– Tree arch.
FUNCTIONS AND BENEFITS
– Structure with a check valve in each drip tip to keep water in the pipeline when the irrigation pump is stopped. Pressure to open check valve in drip tip: 0.14 bar.
– All drip tips open and close at the same time, water balance is maximum at each drip tip.
– The amount of water supplied is more accurate.
– Pressure compensation mechanism
Balanced and precise water distribution for the drippers over a wide pressure range.
Water and nutrients are distributed 100% evenly along the drip line.
The drip tip is specially designed with regular self-cleaning mechanism.
During operation – regardless of the beginning or the end of the irrigation cycle – residues will be ejected from the drip tip when found.
– The drip tip is uniquely designed with the mechanism against root penetration into the drip tip, completely independent of chemicals.
– The filter is very large at each drip tip.
– The water path is very wide inside the drip tip.
– TurboNet ™ water passageway.
– The drip tip is glued inside the wire tube.
Water enters the drip hole from the central flow, and the residue is trapped at the inlet of the drip hole.
– Flexible in spreading dropper, suitable for all terrain.
– Anti-UV, resist direct heat from the sun, so can be installed on the surface of the soil.
– Single drip tip at the outlet of the tube.
– Allow drip cord to be buried underground without chemical protection.
SPECIFICATION
– There are many flow rates to choose from: 1.0, 1.6, 2.3 l / h.
– The distance between two drippers: 0.3, 0.4, 0.5, 1.00 m
(The distance between the two drippers differs depending on the user’s requirements).
– Solution pressure: 1 – 4.0 bar.
– Anti-drip mechanism.
– Solution pressure: 0.5-4.0 bar.
– Maximum pressure in the system: 4 bar.
– Filter core size (recommended): 120 mesh.
– Outer diameter of drip wire (mm): 17.0
– Inner diameter of the drip wire (mm): 14.6
Coil length: 25, 50, 100, 400m.
